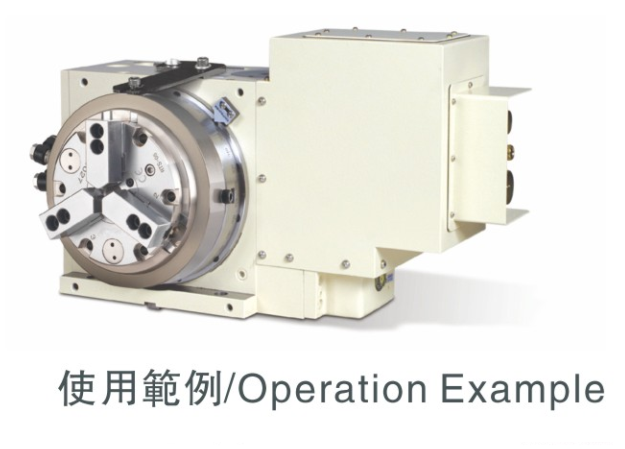

防塵裝置：使用迷宮環設計，工作中鐵屑及切削液不易進入夾盤內部，使夾盤延長使用壽命與精度保持。

內藏式止逆裝置：內藏式止逆閥設計，夾持狀態下不需持續供氣也能保持夾持力，并且大幅降低工作扭矩減少負載。
提高轉速：回轉速度范圍從100RPM到180RPM，較高的轉速能夠?qū)?yīng)更廣范圍的應用。
前置式氣缸：氣缸與夾盤直結設計，確保夾持的穩定性，更方便於組裝及操作。
氣缸防銹處理：在潮濕及工作環境較差的情況，氣缸內部經防銹處理，不會生銹或卡死。

Dust and water proof cover:
Design with Labyrinth Seal Rings, prevent the metal chips and coolant into the internal cylinder to guarantee chuck's performance and service life.
Built in check Valve:
Design with built in Check Valve. It's doesn't need to supply the air continuously and remain low working torque also reduce the air consumption.
Higher Rotation Speed:
The rotation speed from 100RPM to 180RPM, higher rotation speed to fit with more kind of working.
Integral pneumatic cylinder:
Connect chuck and built-in cylinder to each other directly;thus enables operation stability.Moreover, it is more convenient for installation and operation since the use of draw tube and draw bar are no longer necessary.
Rustproof treated cylinder:
The cylinder won’t get rusty and seized even in wet or high moisture working environment.

規格 Spec 型號 Model	通孔直徑 Thru hole dia. mm	活塞面積 Piston Area cm2	柱塞行程 Piston stroke mm	爪行程直徑 Jaw stroke Dia. mm
RTS-05	16	74	10	4.6
RTS-06	20	120	13	5.5
RTS-08	30	190	16	6.8
RTS-10	43	280	19	8
RTS-05T	16	74	10	4.6
RTS-06T	20	120	13	5.5

規格 Spec 型號 Model	凈重 Weight Kg	最高轉速 Max RPM	最大設定壓力 Max.Pressure kgf/cm2(Mpa)	氣壓夾持力 Gripping Force At Air Pressure 7kgf/cm2 Kgf(KN)	夾持范圍 Gripping Range mm
RTS-05	10	450	7(0.7)	1340(13.1)	?4-?136
RTS-06	16.8	350	7(0.7)	2330(22.8)	?25-?166
RTS-08	30.6	300	7(0.7)	3730(36.5)	?33-?215
RTS-10	45.1	250	7(0.7)	5480(53.7)	?43-?255
RTS-05T	9.7	450	7(0.7)	1340(13.1)	?4-?136
RTS-06T	16.3	350	7(0.7)	2330(22.8)	?25-?166

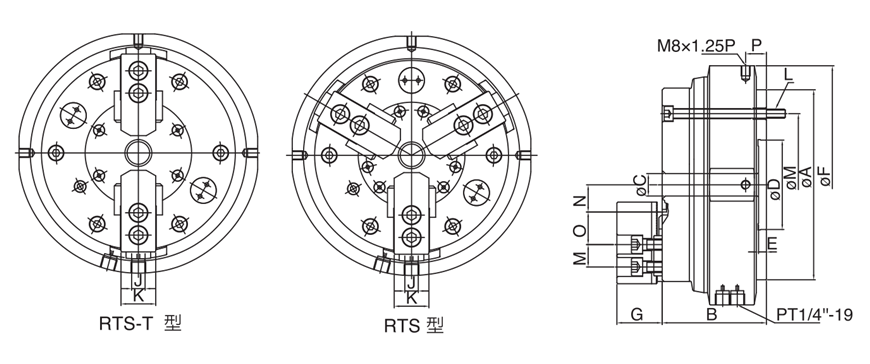

規格 Spec 型號 Model	A	B	C	D	E	F	G	H	I
RTS-05	140	85	16	60	6	182	33.6	62	14
RTS-06	170	93	20	80	7	215	40.4	73	20
RTS-08	215	112	30	110	8	255	42.4	95	25
RTS-10	255	120	43	140	8	300	46.4	110	30
RTS-05T	140	85	16	60	6	182	33.6	62	14
RTS-06T	170	93	20	80	7	215	40.4	73	20

規格 Spec 型號 Model	J	K	L	M	P	N max	N min	O mx	O  min
RTS-05	10	25	6-M8×1.25P	PCD?118	18.5	26.93	24.62	20.05	6.55
RTS-06	12	31	6-M8×1.25P	PCD?147	18.5	36.46	33.69	21.55	15.55
RTS-08	14	35	6-M10×1.5P	PCD?185	19.5	44.92	41.52	29.55	17.55
RTS-10	16	40	6-M10×1.5P	PCD?220	21.5	53.63	49.59	36.55	17.05
RTS-05T	10	25	6-M8×1.25P	PCD?118	18.5	26.93	24.62	20.05	6.55
RTS-06T	12	31	6-M8×1.25P	PCD?147	18.5	36.46	33.69	21.55	15.55

保留技術更改的權利,恕不另行通知 Subject to technology changes without prior information

非標需求可定做 Non-standard requirements can be made
